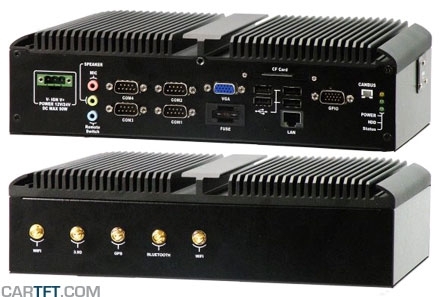

Kompletně pasivní Car PC pro nejnáročnější použití jako Fleet PC v ambulancích, policii nebo v oblasti spedice. Produkt je kompletní, doplnit je nutno pouze 2.5" HDD nebo SSD.
| Dimensions / Weight | 280mm W x 181.5 D x 76.8mm H |
| CPU | Intel Atom D525 Dual Core 2x 1.8GHz |
| Chipset | Intel ICH8M |
| RAM | 1x SO-DDR-3 RAM (up to 4GB) [1x 1GB RAM included] |
| Graphics | Intel GMA |
| Expansion | - 2x Mini-PCIe
- 2x Mini-Module |
| OS Support | Windows XP Home/Pro/Embedded, Windows 7, Linux |
| Vibration & Shock | IEC 60068-2-64, IEC 60068-2-27 |
| Operating temperature | -20~50°C (with SSD or CF) |
| Certification | CE, FCC, E-Mark 13 |
| I/O | - 1x Gigabit LAN (Realtek RTL8111D)
- 4x RS232 (2x with RS-422/485)
- 4x USB2.0
- GPIO port (4in, 4out)
- Audio : Mic-In, SPK Out, Remote switch
- 1x DSUB-15 VGA
- 5x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
- SIM card slot
- 2pin JST connector (CAN-BUS) |
| Drive bays | - 1x 2.5" SATA HDD/SSD drive bay
- 1x External CF-card slot (Type I/II) |
| Power supply | 9~32V DC PSU included
- Power off Delay Time Setting by Software |
| Scope of supply | - FleetPC-6 PC with Intel Atom D525 (2x1.8Ghz), 1GB RAM, mounting |
| | - WLAN, GPRS and GPS antennas |
