Kvalitní PC barebone na platformě AMD Fusion od renomovaného výrobce Jetway. Sestava musí být doplněna RAM a HDD/SSD, aby byla funkční. Vzhledem ke svým rozměrům a tichému provozu je vhodná všude tam, kde je omezený prostor nebo vysoké nároky na tichost počítače.
| CPU |
AMD Fusion E350D Dual core APU ( TDP:22W )
CPU Clock Speed: 1.6GHz
Radeon™ Brand : HD 6310 ( 492MHz ) |
| Chipset |
AMD Hudson M1 Chipset |
| Audio |
VIA 1705 Audio CODEC
5.1 CH HD Audio with Content Protection
Support for S/PDIF Out |
| LAN |
Realtek Gigabit LAN
802.11b/g/n Mini-PCI-E Wi-Fi card |
| Internal drive |
- 1x 2.5" interner Schacht für SATA HDD/SSD |
| RAM |
2 x SODIMM Sockets for un-buffered Single Channel 64-bit DDR3 800-1066
Max. capacity of system memory up to: 8GB |
| Power |
12VDC
Power consumption 20W |
| Features |
- Integrated WLAN (802.11 b/g/n) with antenna [Atheros] |
| Front connectors |
- 1 x Power LED
- 1 x Power button
- 1 x MIC jack and 1 x headphone jack
- 2 x USB 2.0/1.1 ports
- 1 x card reader (SDC/MMC/MS) |
| Dimensions |
185 x 205 x 30mm (HxWxD) |
| Rear connectors |
- 1 x WiFi Antenna connector
- 1 x HDMI port
- 1 x DVI-I port
- 1 x e-SATA(or USB2.0) port
- 1 x RJ-45 port
- 1 x USB 3.0 port
- 1 x 12V DC in
- 1 x TV tuner Antenna hole |
|
|

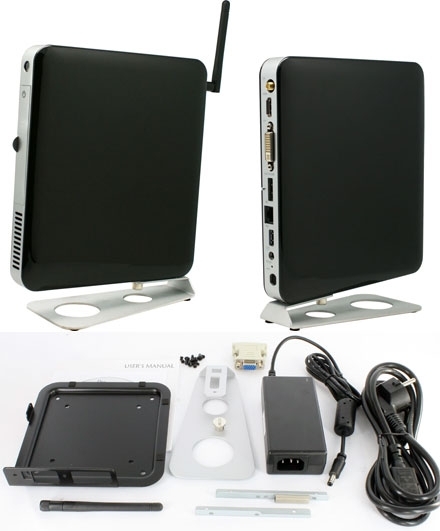

| Scope of supply |
- Jetway JBC620C86-E35D-BW Barebone |
|
- DriverCD |
|
- Quickstart-Guide |
|
- AC/DC Adapter (100-240VAC, 12VDC/5A) + EU power cord |
|
- DVI-DSUB-15 VGA Adapter |
|
- Screws and 2.5" installation rails |
|
- Stand |
|
- PC remote control unit |
|
- WLAN antenna |
